Description

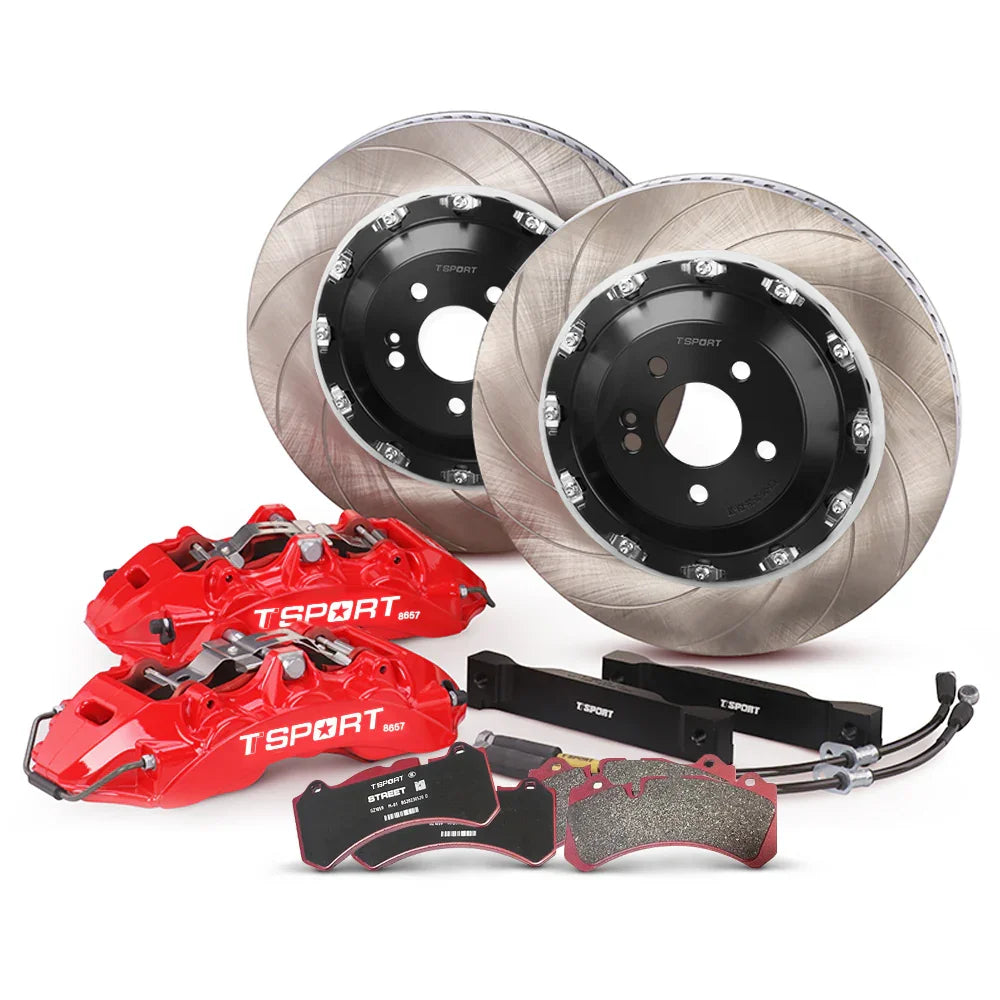

Classic Series · Front Axle · 6-Piston.
Manufacturer technical specifications
- Series: Classic Series
- Model / Application: 8657S
- Axle Position: Front
- Piston Count: 6-piston
- Piston Type: Two-piece heat-insulated pistons with dust boots
- Piston Diameter: 30 mm × 2 / 34 mm × 2 / 38 mm × 2
- Caliper Dimensions: L 350 mm × W 165 mm × H 92.64 mm
- Total Piston Area: 55.0 cm² per caliper
- Manufacturing Process: Two-piece forged aluminum body
- Net Weight: 4.05 kg per caliper (without pads)
- Surface Finish: High-temperature gloss coating
Listed configuration options
- Caliper Color: Standard Color (As Shown in the Image), Custom Color (Color Code Required)
- Rotor Size: 355x32mm (Wheel ≥ 18″), 380x34mm (Wheel ≥ 19″), 405x34mm (Wheel ≥ 20″)
- Rotor Material & Design: Steel – Curved Slotted, Steel – GrainSlot, Steel – Drilled & Slotted, Steel – WaveSlot, Carbon Ceramic – Cross Drilled
The manufacturer lists 30 source configurations. Final selection, brake system compatibility, vehicle/VIN, axle, wheel clearance and rotor dimensions must be confirmed before order; options displayed are not confirmed AutoFusion stock.
AutoFusion Bangladesh selling price, supplier terms, availability, lead time and rights to use manufacturer images are pending verification. No dealer authorization is implied.
